ALIEN REF 9627/9727 AL04803551U
AG standard Alien REF 9627/9727 Label size is 48x35mm. This antenna design is suit for all kinds of hang-tags, cases and pallets etc. RFID projects.
Performance Features
RFID Chip : |
Alien H3/H4 |
Protocol : |
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency : |
860~960MHz |
Operating Mode : |
Passive (Battery free) |
Memory : |
64 bit TID, 96 bit EPC, 512 bit User Memory, 32Bits Access, 32Bits Kill |
IC Life : |
100,000 Programming cycles, 10 years data retention |
Read distance : |
Average reading distance > 2m (Reader and Environment Dependent) |
Download Full Datasheet

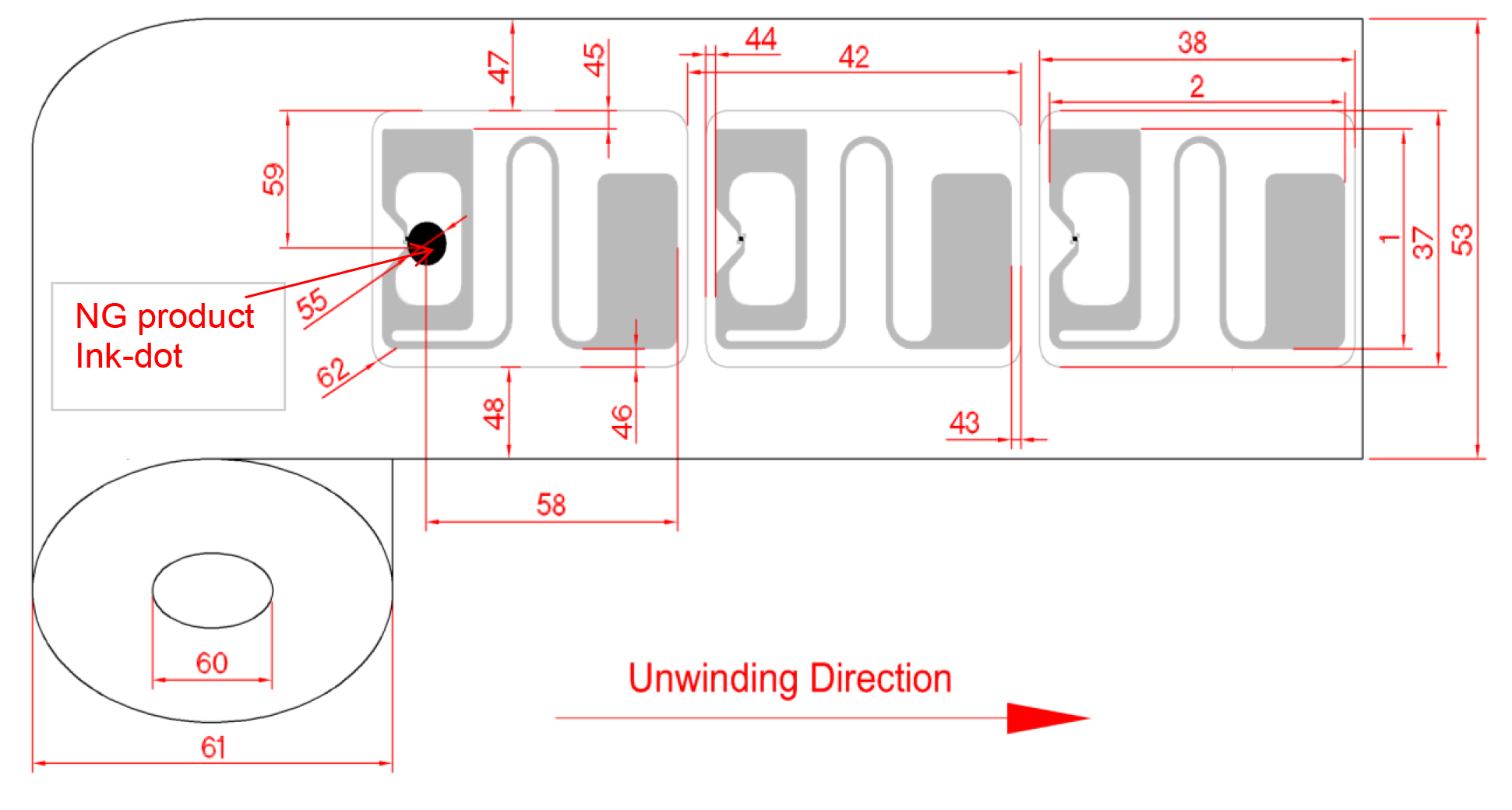

Mechanical Dimensions
No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
1 |
Antenna Width |
30.00 mm |
± 0.20 mm |
1.181 in. |
2 |
Antenna Length |
45.00 mm |
± 0.20 mm |
1.772 in. |
37 |
Label Width |
35.00 mm |
± 0.20 mm |
1.378 in. |
38 |
Label Length |
48.00 mm |
± 0.50 mm |
1.890 in. |
42 |
Label Pitch |
50.80 mm |
± 1.00 mm |
2.000 in. |
43 |
Antenna Edge to Label Edge (Left) |
1.50 mm |
± 1.50 mm |
0.059 in. |
44 |
Antenna Edge to Label Edge (Right) |
1.50 mm |
± 1.50 mm |
0.059 in. |
45 |
Antenna Edge to Label Edge (Top) |
2.00 mm |
± 1.50 mm |
0.079 in. |
46 |
Antenna Edge to Label Edge (Bottom) |
2.00 mm |
± 1.50 mm |
0.079 in. |
47 |
Label Edge to Liner Edge (Top) |
13.00 mm |
± 1.50 mm |
0.512 in. |
48 |
Label Edge to Liner Edge (Bottom) |
13.00 mm |
± 1.50 mm |
0.512 in. |
53 |
Liner Width |
60.00 mm |
± 1.00 mm |
2.362 in. |
55 |
Ink-dot Size |
4.00 mm |
± 2.00 mm |
0.157 in |
58 |
Ink-dot to Product Edge(Right) |
41.12 mm |
± 2.00 mm |
1.619 in |
59 |
Ink-dot to Product Edge(Top) |
15.00 mm |
± 2.00 mm |
0.591 in |
60 |
Core inner diameter |
76.20 mm |
± 1.00 mm |
3.000 in. |
61 |
Reel Outer diameter |
≤ 210 mm (Based on the actual shipment quantity) |
62 |
Label Corner Radius |
3.18 mm |
± 0.20 mm |
0.125 in. |
Download Full Datasheet
Label Structure
No. |
Item |
Material |
Quality and Thickness |
1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
Operating Temperature/Humidity : |
-0~60℃ / 20%~80% RH |
Storage Temperature/Humidity : |
20~30℃ / 20%~60% RH |
Shelf Life : |
1 year in anti-static bag at 20~30℃ / 20% ~60% RH |
ESD Voltage Immunity : |
2 kV (HBM) |
Bending Diameter : |
> 50mm |
