ALIEN REF 9654/9754 AL09602351U
AG standard Alien REF 9654/9754 Label size is 96x23mm. This antenna design is suit for high density plastic totes, windshields, batteries etc. RFID projects.
Performance Features
| RFID Chip : |
Alien H3/H4 |
| Protocol : |
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency : |
860~960MHz |
| Operating Mode : |
Passive (Battery free) |
| Memory : |
64 bit TID, 96 bit EPC, 512 bit User Memory, 32Bits Access, 32Bits Kill |
| IC Life : |
100,000 Programming cycles, 10 years data retention |
| Read distance : |
Average reading distance > 6m (Reader and Environment Dependent) |
Download Full Datasheet

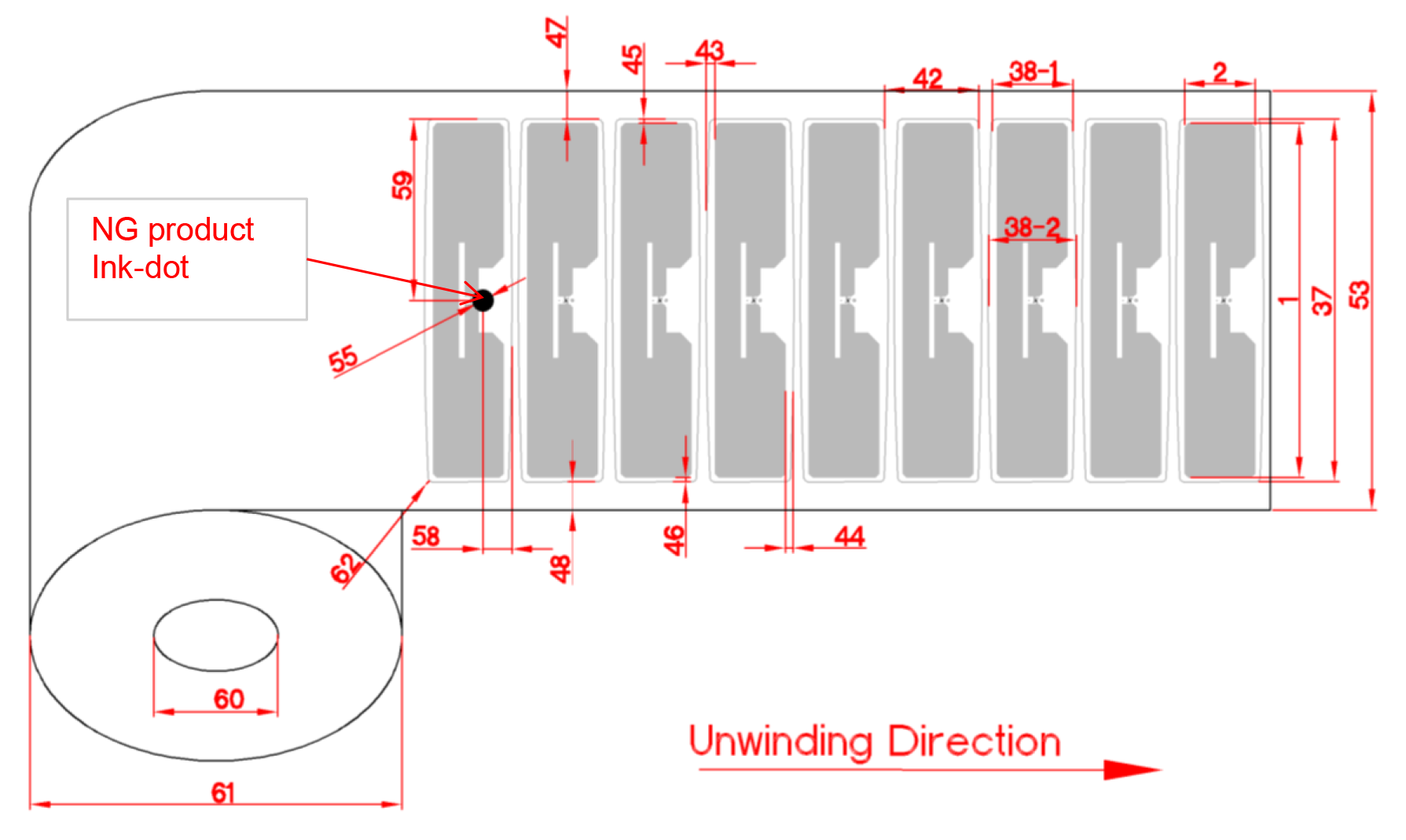

Mechanical Dimensions
| No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
| 1 |
Antenna Width |
93.00 mm |
± 0.20 mm |
3.661 in. |
| 2 |
Antenna Length |
19.00 mm |
± 0.20 mm |
0.748 in. |
| 37 |
Label Width |
96.50 mm |
± 0.20 mm |
3.799 in. |
| 38-1 |
Label Length |
22.20 mm |
± 0.50 mm |
0.874 in. |
| 38-2 |
Label Length |
23.20 mm |
± 0.50 mm |
0.913 in. |
| 42 |
Label Pitch |
25.40 mm |
± 1.00 mm |
1.000 in. |
| 43 |
Antenna Edge to Label Edge (Left) |
1.60 mm |
± 2.00 mm |
0.063 in. |
| 44 |
Antenna Edge to Label Edge (Right) |
1.60 mm |
± 2.00 mm |
0.063 in. |
| 45 |
Antenna Edge to Label Edge (Top) |
1.75 mm |
± 2.00 mm |
0.069 in. |
| 46 |
Antenna Edge to Label Edge (Bottom) |
1.75 mm |
± 2.00 mm |
0.069 in. |
| 47 |
Label Edge to Liner Edge (Top) |
5.17 mm |
± 1.50 mm |
0.204 in. |
| 48 |
Label Edge to Liner Edge (Bottom) |
5.17 mm |
± 1.50 mm |
0.204 in. |
| 53 |
Liner Width |
110.00 mm |
± 1.00 mm |
4.331 in. |
| 55 |
Ink-dot Size |
4.00 mm |
± 2.00 mm |
0.157 in |
| 58 |
Ink-dot to Product Edge(Right) |
5.00 mm |
± 2.00 mm |
0.197 in |
| 59 |
Ink-dot to Product Edge(Top) |
46.50 mm |
± 2.00 mm |
1.831 in |
| 60 |
Core inner diameter |
76.20 mm |
± 1.00 mm |
3.000 in. |
| 61 |
Reel Outer diameter |
Based on the actual shipment quantity |
| 62 |
Label Corner Radius |
1.60 mm |
± 0.20 mm |
0.063 in. |
Download Full Datasheet
Label Structure
| No. |
Item |
Material |
Quality and Thickness |
| 1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
| 2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
| 3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
| 4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
| 5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
| Operating Temperature/Humidity : |
-0～60℃ / 20%～80% RH |
| Storage Temperature/Humidity : |
20～30℃ / 20%～60% RH |
| Shelf Life : |
1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity : |
2 kV (HBM) |
| Bending Diameter : |
＞ 50mm |
