ALIEN REF 9640/9740 AL09801251U
AG standard Alien REF 9640/9740 Label size is 98x12.5mm. This antenna design is suit for apparel, hang tags, boxed items, pallet placards, electronices, cases, baggage, denim, poly bags etc. RFID projects.
Performance Features
RFID Chip : |
Alien H3/H4 |
Protocol : |
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency : |
860~960MHz |
Operating Mode : |
Passive (Battery free) |
Memory : |
64 bit TID, 96 bit EPC, 512 bit User Memory, 32Bits Access, 32Bits Kill |
IC Life : |
100,000 Programming cycles, 10 years data retention |
Read distance : |
Average reading distance > 6m (Reader and Environment Dependent) |
Download Full Datasheet

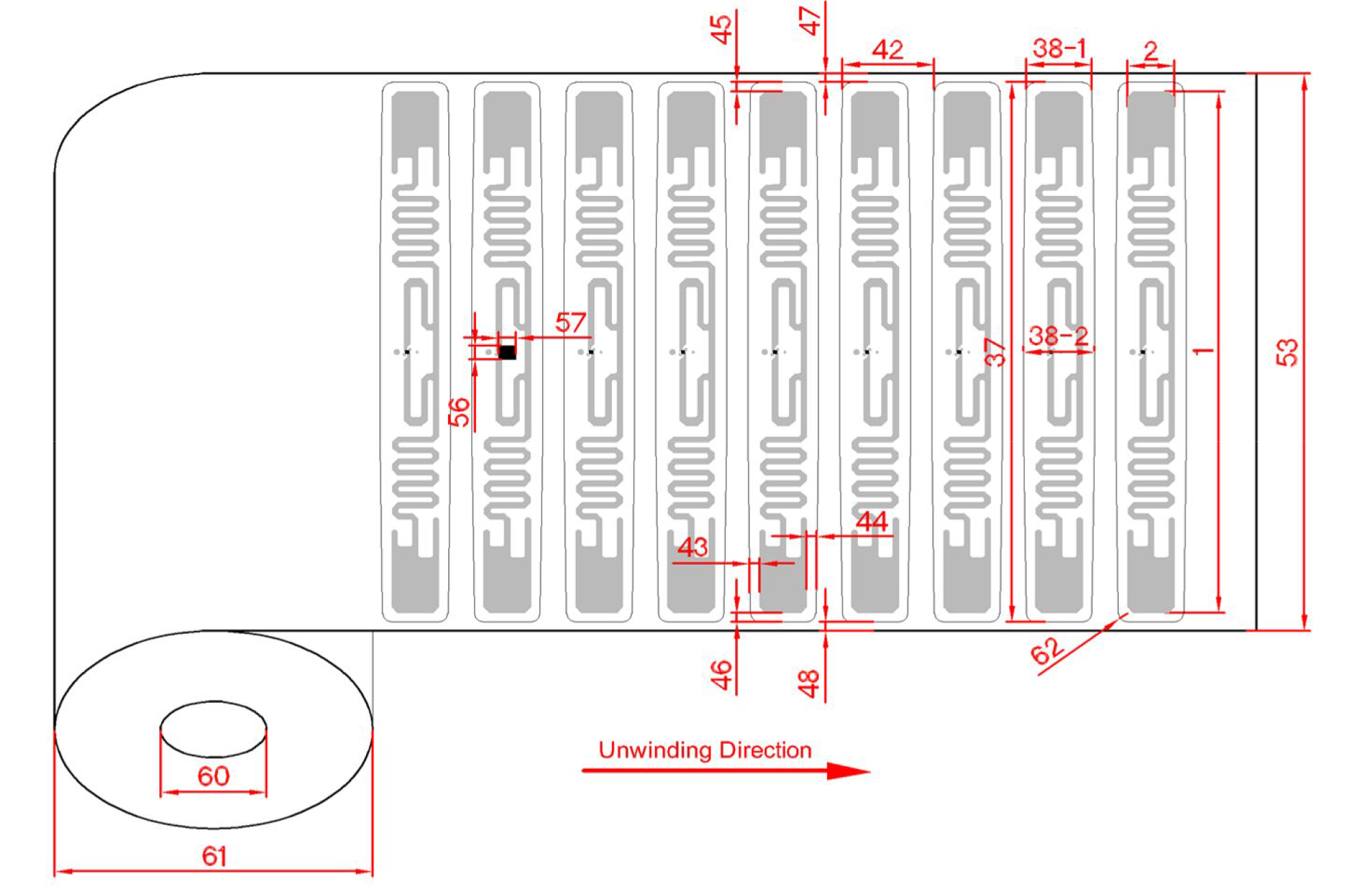

Mechanical Dimensions
No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
1 |
Antenna Width |
94.80 mm |
± 0.20 mm |
3.732 in |
2 |
Antenna Length |
8.15 mm |
± 0.20 mm |
0.321 in |
37 |
Label Width |
98.18 mm |
± 0.20 mm |
3.865 in |
38-1 |
Label Length |
11.31 mm |
± 0.50 mm |
0.445 in |
38-2 |
Label Length(Middle) |
12.31 mm |
± 0.50 mm |
0.485 in |
42 |
Label Pitch |
15.88 mm |
± 1.00 mm |
0.625 in |
43 |
Antenna Edge to Label Edge (Left) |
1.58 mm |
± 1.50 mm |
0.062 in |
44 |
Antenna Edge to Label Edge (Right) |
1.58 mm |
± 1.50 mm |
0.062 in |
45 |
Antenna Edge to Label Edge (Top) |
1.69 mm |
± 1.50 mm |
0.067 in |
46 |
Antenna Edge to Label Edge (Bottom) |
1.69 mm |
± 1.50 mm |
0.067 in |
47 |
Label Edge to Liner Edge (Top) |
1.59 mm |
± 1.50 mm |
0.063 in |
48 |
Label Edge to Liner Edge (Bottom) |
1.59 mm |
± 1.50 mm |
0.063 in |
53 |
Liner Width |
101.36 mm |
± 1.00 mm |
3.991 in |
56 |
Ink-dot Width |
2.50 mm |
± 2.00 mm |
0.098 in |
57 |
Ink-dot Length |
3.00 mm |
± 2.00 mm |
0.118 in |
60 |
Core inner diameter |
76.20 mm |
± 0.50 mm |
3.000 in |
61 |
Reel Outer diameter |
≤ 203mm (Based on the actual shipment quantity) |
62 |
Label Corner Radius |
1.59 mm |
± 0.20 mm |
0.063 in |
Download Full Datasheet
Label Structure
No. |
Item |
Material |
Quality and Thickness |
1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
Operating Temperature/Humidity : |
-0~60℃ / 20%~80% RH |
Storage Temperature/Humidity : |
20~30℃ / 20%~60% RH |
Shelf Life : |
1 year in anti-static bag at 20~30℃ / 20% ~60% RH |
ESD Voltage Immunity : |
2 kV (HBM) |
Bending Diameter : |
> 50mm |
