NXP Icode SLIX AL050050C2H
AG standard NXP Icode SLIX AL050050C2H HF RFID Label size is 50x50mm. This antenna design is suit for assets management, tickets, book spines and documents management etc. RFID projects.
Performance Features
RFID Chip: |
NXP ICODE SLIX |
Protocol: |
ISO/IEC 15693, ISO/IEC 18000-3 Mode 1 |
Operating Frequency: |
13.56MHz |
Operating Mode: |
Passive(Battery free) |
Memory: |
Total of 1024 bits, organized in 32 blocks of 4 bytes each |
IC Life: |
100,000 Programming cycles, 10 years data retention |
Download Full Datasheet
Mechanical Dimensions
No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
1 |
Antenna Width |
47.00 mm |
± 0.20 mm |
1.850 in. |
2 |
Antenna Length |
47.00 mm |
± 0.20 mm |
1.850 in. |
37 |
Label Width |
50.00 mm |
± 0.50 mm |
1.969 in. |
38 |
Label Length |
50.00 mm |
± 0.50 mm |
1.969 in. |
42 |
Label Pitch |
59.50 mm |
± 1.00 mm |
2.343 in. |
43 |
Antenna Edge to Label Edge (Left) |
1.50 mm |
± 1.50 mm |
0.059 in. |
44 |
Antenna Edge to Label Edge (Right) |
1.50 mm |
± 1.50 mm |
0.059 in. |
45 |
Antenna Edge to Label Edge (Top) |
1.50 mm |
± 1.50 mm |
0.059 in. |
46 |
Antenna Edge to Label Edge (Bottom) |
1.50 mm |
± 1.50 mm |
0.059 in. |
47 |
Label Edge to Liner Edge (Top) |
2.50 mm |
± 2.00 mm |
0.098 in. |
48 |
Label Edge to Liner Edge (Bottom) |
2.50 mm |
± 2.00 mm |
0.098 in. |
53 |
Liner Width |
55.00 mm |
± 1.00 mm |
2.165 in. |
55 |
Ink-dot Size |
5.00 mm |
± 2.00 mm |
0.197 in. |
58 |
Ink-dot to Product Edge(Right) |
25.00 mm |
± 2.00 mm |
0.984 in. |
59 |
Ink-dot to Product Edge(Top) |
25.00 mm |
± 2.00 mm |
0.984 in. |
60 |
Core inner diameter |
76.20 mm |
± 1.00 mm |
3.000 in. |
61 |
Reel Outer diameter |
≤ 203.00mm |
62 |
Label Corner Radius |
3.00 mm |
± 0.20 mm |
0.118 in. |
Download Full Datasheet

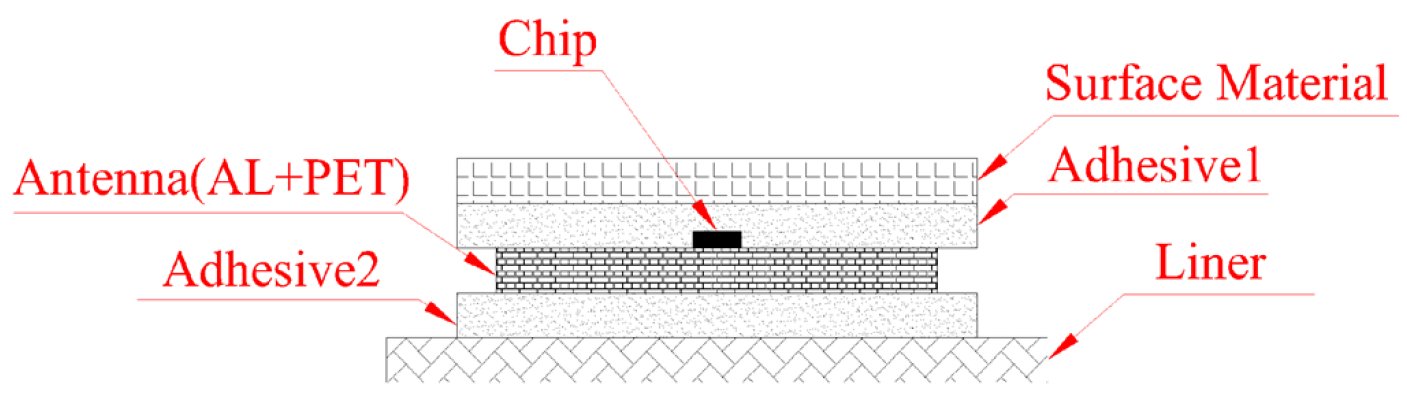

Label Structure
No. |
Item |
Material |
Quality and Thickness |
1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
Operating Temperature/Humidity : |
-0~60℃ / 20%~80% RH |
Storage Temperature/Humidity : |
20~30℃ / 20%~60% RH |
Shelf Life : |
1 year in anti-static bag at 20~30℃ / 20% ~60% RH |
ESD Voltage Immunity : |
2 kV (HBM) |
Bending Diameter : |
> 50mm |
