ALIEN REF 9662/9762 AL07302151U


AG standard Alien REF 9662/9762 Label size is 73.5x21mm. This antenna design is suit for apparel, hang tags, boxed items, pallet placards, electronics, cases, baggage, denim, poly bags etc. RFID projects.

Performance Features

Alien REF 9662
RFID Chip : Alien H3/H4
Protocol : ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency : 860~960MHz
Operating Mode : Passive (Battery free)
Memory : 64 bit TID, 96 bit EPC, 512 bit User Memory, 32Bits Access, 32Bits Kill
IC Life : 100,000 Programming cycles, 10 years data retention
Read distance : Average reading distance > 6m (Reader and Environment Dependent)
Download Full Datasheet

Mechanical Dimensions

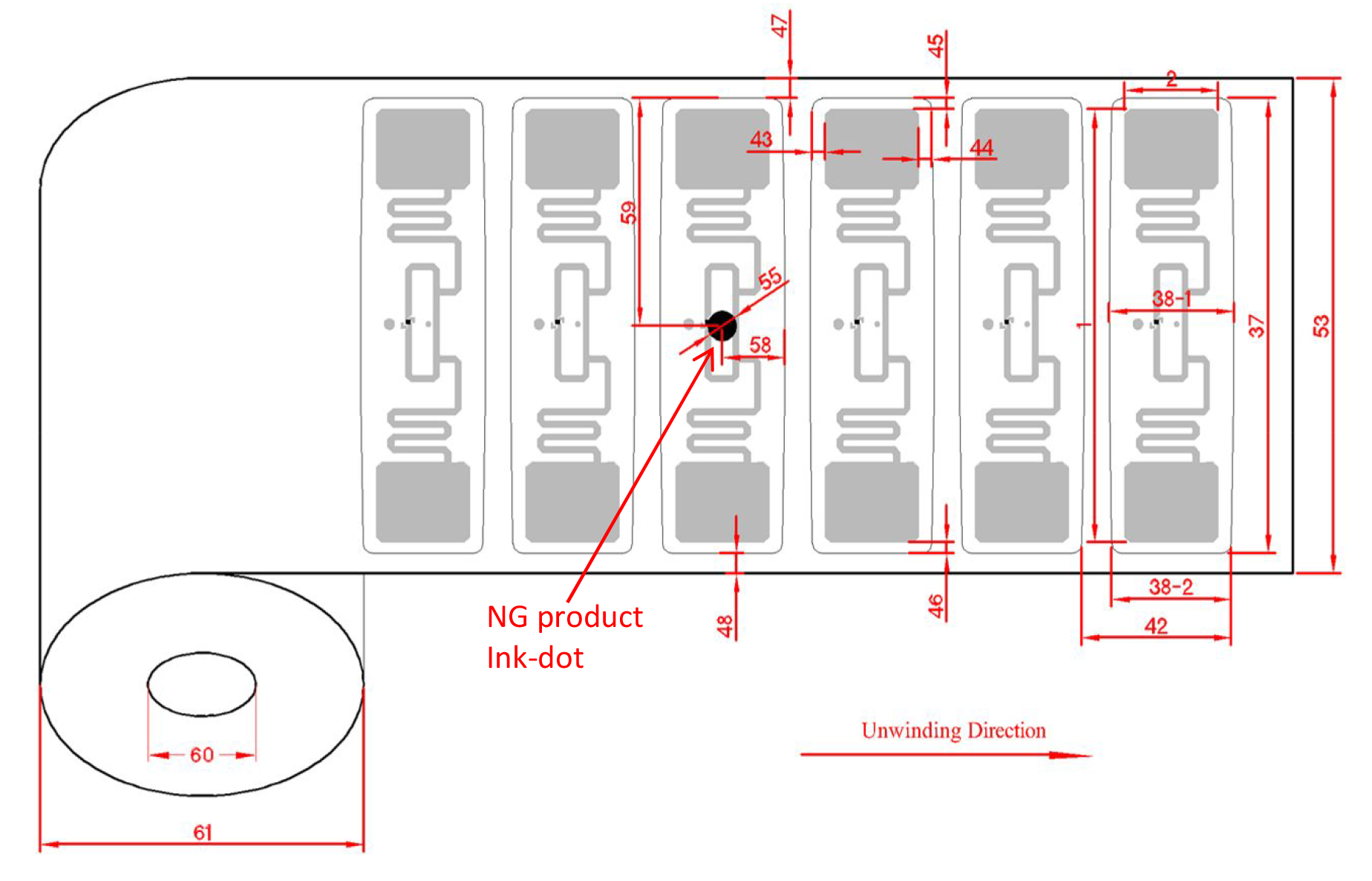

Alien REF 9662 Layout
No. Item Parameter (mm) Tolerance (mm) Parameter (inch)
1 Antenna Width 70.00 mm ± 0.20 mm 2.756 in
2 Antenna Length 17.00 mm ± 0.20 mm 0.669 in
37 Label Width 73.50 mm ± 0.50 mm 2.894 in
38-1 Label Length 21.20 mm ± 0.50 mm 0.835 in
38-2 Label Length 20.29 mm ± 0.50 mm 0.799 in
42 Label Pitch 25.40 mm ± 1.00 mm 1.000 in
43 Antenna Edge to Label Edge (Left) 2.10 mm ± 1.50 mm 0.083 in
44 Antenna Edge to Label Edge (Right) 2.10 mm ± 1.50 mm 0.083 in
45 Antenna Edge to Label Edge (Top) 1.75 mm ± 1.50 mm 0.069 in
46 Antenna Edge to Label Edge (Bottom) 1.75 mm ± 1.50 mm 0.069 in
47 Label Edge to Liner Edge (Top) 3.25 mm ± 1.50 mm 0.128 in
48 Label Edge to Liner Edge (Bottom) 3.25 mm ± 1.50 mm 0.128 in
53 Liner Width 80.00 mm ± 1.00 mm 3.150 in
55 Ink-dot Size 5.00 mm ± 2.00 mm 0.197 in
58 Ink-dot to Product Edge(Left) 10.60 mm ± 2.00 mm 0.417 in
59 Ink-dot to Product Edge(Top) 36.75 mm ± 2.00 mm 1.447 in
60 Core inner diameter 76.20 mm ± 0.50 mm 3.000 in
61 Reel Outer diameter ≤ 203mm (Based on the actual shipment quantity)
62 Label Corner Radius 1.60 mm ± 0.20 mm 0.063 in
Download Full Datasheet

Label Structure

Alien REF 9662
No. Item Material Quality and Thickness
1 Surface Material White art paper 80g/m² ± 10%, 72μm ± 10%
2 Adhesive 1 Acrylic emulsion 19g/m2 ± 5g/m2
3 Antenna Aluminum etching AL + PET (10μm + 50μm)
4 Adhesive 2 Acrylic emulsion 19g/m2 ± 5g/m2
5 Release Paper White glassine paper 61g/㎡ ± 10%, 55μm ± 10%
Download Full Datasheet

Working Environment

Operating Temperature/Humidity : -0～60℃ / 20%～80% RH
Storage Temperature/Humidity : 20～30℃ / 20%～60% RH
Shelf Life : 1 year in anti-static bag at 20～30℃ / 20% ～60% RH
ESD Voltage Immunity : 2 kV (HBM)
Bending Diameter : ＞ 50mm
Download Full Datasheet
