Shenzhen AllGood Sci & Tech Co., Ltd. An AllGood-Group Company

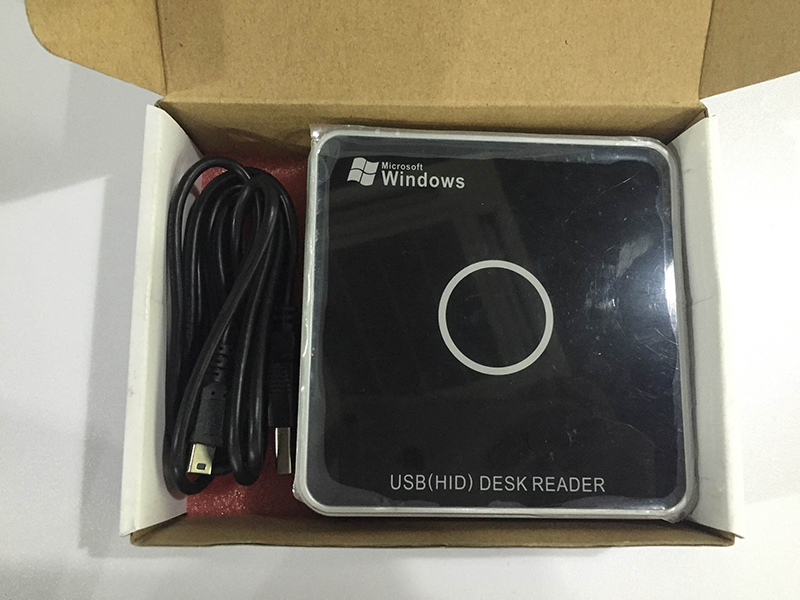

AllGood UHF RFID USB Desktop Reader - AG-UD-10
AllGood UHF RFID USB Desktop Reader - AG-UD-10. The reader are widely used for tag issuance, documents issuance, file issuance, certificate issuance etc.
BASIC INFORMATION
| Dimensions : | 290 (W) x 235 (L) x 50 (H) mm |
| Weight : | 400g |
| Working Temperature : | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature : | -40°C to 80°C (-40°F to 176°F) |
| Humidity : | 10% to 95% |
| Casing : | IP54 |
| Polarization : | RHCP / Linear |
| Peak Gain : | 6 dbi / 4 dbi |
| Beam Width : | >40 MHz / >200 MHz |
| VSWR Ratio : | 1.5:1.0 dBi / 1.5:1.0 dBi |
| Axial Ratio : | < 2.0 Db |
| Power : | External 5 VDC (70mAh @sleep mode; 150mAh @ operating mode) |
| Frequency Ranges : | 902 or 928 MHz band or 856-868Mhz |
| RF power control : | 20-30dBm |
| Tag Air Interfaces : | EPC Class 1 Gen 2 |
| Communication Interface : | USB (HID compliant) |
| Read / Write Range : | >1cm – 8cm tag and antenna dependent |
FEATURES
| Support ISO18000-6C EPC Gen2 |
| Support USB HID compliant |
| Low voltage |
| Controlled read distance within 8cm |
| Superb coverage with microstrip antenna or near field antenna at customer’s choice |
