Shenzhen AllGood Sci & Tech Co., Ltd. An AllGood-Group Company

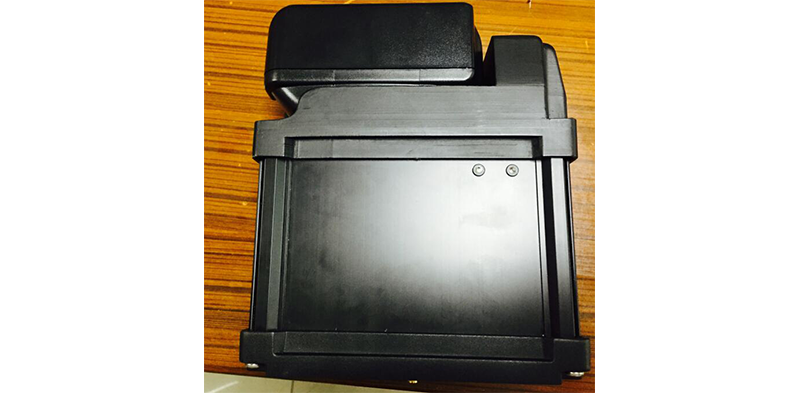

AllGood UHF RFID Forklift Reader - AG-UF-001/004
AllGood UHF RFID Forklift Reader - AG-UF-001/004. The reader are widely used for big warehouse, logistics, mobile bin, forklift location tracking, rubbish truck, indoor and outdoor event management etc.
BASIC INFORMATION
| Dimensions : | 300 (L) x 78 (W) x 155 (H) mm |
| Weight : | 1.6kg (with battery) |
| Working Temperature : | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature : | -40°C to 80°C (-40°F to 176°F) |
| Humidity : | 10% to 95% |
| Casing : | IP54 |
| Antenna : | Support all types of antennas |
| Battery : | 18V 3000mAh @ 30dBm – 5 hours continuous reading and sending data via Bluetooth @ 25dBm – 7 hours continuous reading and sending data via Bluetooth |
| Frequency Ranges : | 902 or 928 MHz band or upon customer’s request |
| RF power control : | 30dBm |
| Tag Air Interfaces : | EPC Class 1 Gen 2 |
| Communication Interface : | Bluetooth |
| Reader Range : | >5cm - 20m antenna and tag dependent (control within 10cm to 2m on most applications) |
FEATURES
| Support ISO18000-6C EPC Gen2 |
| Removable high capacity Li-Ion battery |
| Rapid charger charges battery in 30 minutes |
| Bluetooth interface |
| Rugged metal housing |
| Selectable antenna type |
| Choice of 1 port (UF – 001) or 4 ports (UF – 004) |
| Comes with easily mount carrying case to ease installation processs |
