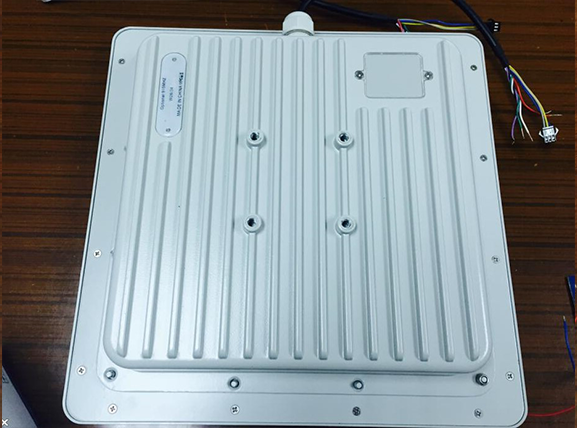

AllGood UHF RFID Integrated Reader - AG-UI-600
AllGood UHF RFID Integrated Reader - AG-UI-600. The reader are widely used for personal identification, access control, car park, vehicle tracking, inventory control etc.
BASIC INFORMATION
| Dimensions : | 306x306x75mm |
| Weight : | 1.5Kg |
| Working Temperature : | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature : | -40°C to 80°C (-40°F to 176°F) |
| Humidity : | 10% to 95% |
| Casing : | IP57 |
| Antenna Connector : | 8dbi linear antenna |
| Frequency Ranges : | 902 or 928 MHz band, 865MHz – 868MHz(Optional) |
| RF power control : | 20-30dBm |
| Tag Air Interfaces : | EPC Class 1 Gen 2 |
| Communication Interface : | Wiegand /USB/TCP/IP |
| Reader Range : | 3-6m tag dependent |
FEATURES
| Support ISO18000-6C EPC Gen2 |
| Support stand-alone mode |
| Always read/Trigger read |
| Wiegand 26(Default) /Wiegand 34/USB/TCP/IP |
| IP57 |
| Read distance up to3- 6meters |
